MCGILL MCF-19-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

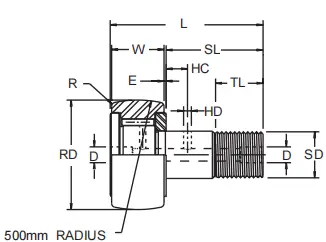

Description
ROLLER DIA. RD NOM. mm
19
ROLLER WIDTH W mm
11
STUD DIA. SD NOM. mm
8
STUD L'GTH. SL NOM. mm
20
OVERALL LENGTH L NOM. mm
32
ENDPLATE EXTENSIONE NOM. mm
0.6
THREAD mm
0.6
THREAD LENGTH TL MIN. mm
M8x1.25
OIL HOLE (HC) NOM. mm
-
OIL HOLE (HD) NOM. mm
-
REAMED HOLE mm
D
NOM.
4•
CORNER RADIUS R mm
0.3
CLAMPING DIA. MIN. mm
13
CLAMPING TORQUE MAX mm
8
MASS kg.
0.029
