MCGILL MCF-52-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

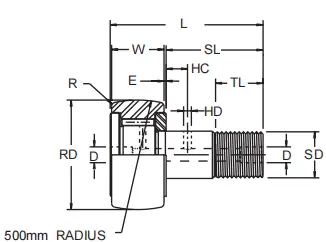

Description
ROLLER DIA. RD NOM. mm
52
ROLLER WIDTH W mm
24
STUD DIA. SD NOM. mm
20
STUD L'GTH. SL NOM. mm
40.5
OVERALL LENGTH L NOM. mm
66
ENDPLATE EXTENSIONE NOM. mm
0.8
THREAD mm
0.8
THREAD LENGTH TL MIN. mm
M20x1.5
OIL HOLE (HC) NOM. mm
9
OIL HOLE (HD) NOM. mm
4
REAMED HOLE mm
D
NOM.
8
CORNER RADIUS R mm
1.5
CLAMPING DIA. MIN. mm
30
CLAMPING TORQUE MAX mm
118
MASS kg.
0.455
