MCGILL MCF-80-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

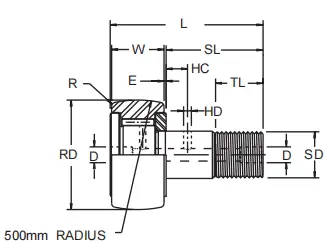

ROLLER DIA. RD NOM. mm
80
ROLLER WIDTH W mm
35
STUD DIA. SD NOM. mm
30
STUD L'GTH. SL NOM. mm
63
OVERALL LENGTH L NOM. mm
100
ENDPLATE EXTENSIONE NOM. mm
1
THREAD mm
1
THREAD LENGTH TL MIN. mm
M30x1.5
OIL HOLE (HC) NOM. mm
15
OIL HOLE (HD) NOM. mm
4
REAMED HOLE mm
D
NOM.
8
CORNER RADIUS R mm
2
CLAMPING DIA. MIN. mm
51
CLAMPING TORQUE MAX mm
441
MASS kg.
1.642
