MCGILL MCF-22A-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

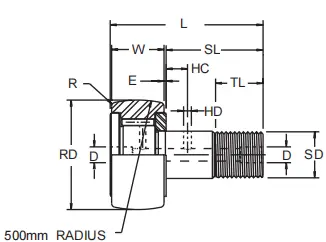

ROLLER DIA. RD NOM. mm
22
ROLLER WIDTH W mm
12
STUD DIA. SD NOM. mm
10
STUD L'GTH. SL NOM. mm
23
OVERALL LENGTH L NOM. mm
36
ENDPLATE EXTENSIONE NOM. mm
0.6
THREAD mm
0.6
THREAD LENGTH TL MIN. mm
M10x1.25
OIL HOLE (HC) NOM. mm
-
OIL HOLE (HD) NOM. mm
-
REAMED HOLE mm
D
NOM.
4
CORNER RADIUS R mm
0.5
CLAMPING DIA. MIN. mm
15
CLAMPING TORQUE MAX mm
15
MASS kg.
0.044
