MCGILL PCF-7
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

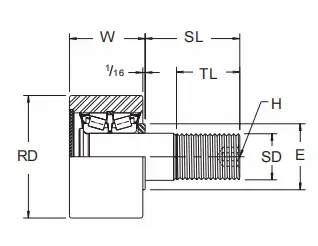

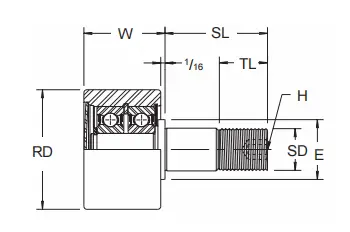

ROLLER DIA. (RD)
7.000
WIDTH (W)
3
STUD DIA. (SD)
2.500
MIN. THREAD LENGTH (TL)
3 1/4
FINE THREADS
2 1/2-12
STUD LENGTH (SL)
5 1/2
HEX SOCKET (H)
7/8
SHOULDER OR ENDPLATE DIA. (E)
3 1/4
RADIAL BASIC DYNAMIC RATING (LBS.)
35800
DYNAMIC THRUST LOAD* RATING (LBS.)
14200
MAX. STATIC CAPACITY (LBS.)
62000
