NSK 100BTR10H
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
Designations
100BTR10H

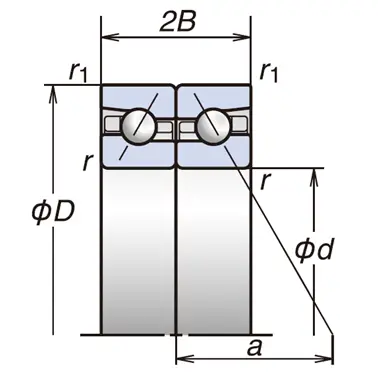

Boundary Dimensions
BTR: 40°
Bearing Type
d
100
mm
Bore diameter
D
150
mm
Outside diameter
2B
45
mm
Assembled Width
r(min.)
1.5
mm
Chamfer Dimension
r1(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Ca
51.5
kN
Basic Dynamic Load Rating
C0a
109
kN
Basic Static Load Rating
Speeds
Grease
6000
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
7600
min-1
Limiting Speed (EL-Preload)
Grease
5100
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
6500
min-1
Limiting Speed (L-Preload)
Dimensions
40°
Contact Angle
a
63.7
mm
Effective Load Center

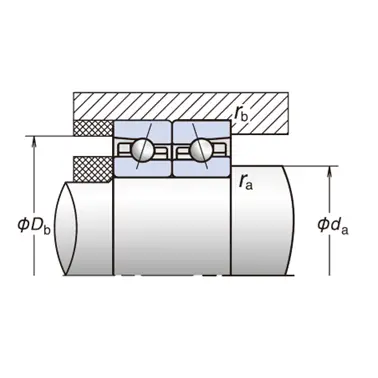

Abutment and Fillet Dimensions
da(min.)
109
mm
Diameter of Shaft Abutment
Db(max.)
144
mm
Diameter of Housing Abutment
ra(max.)
1.5
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.8
mm
Radius of Shaft or Housing Fillet
