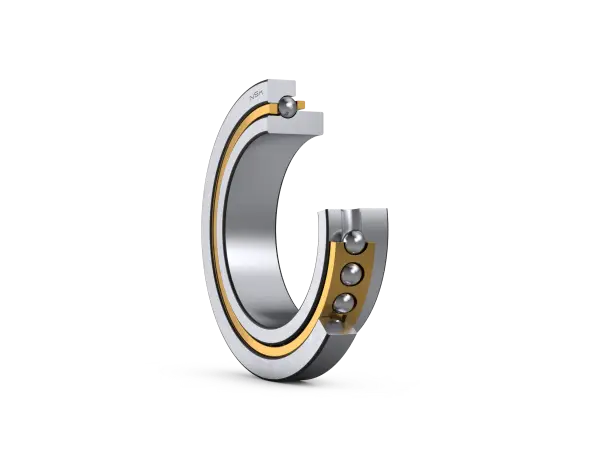

NSK 100TAC29F
Angular Contact Thrust Ball Bearings (NSKTAC F Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
100TAC29F

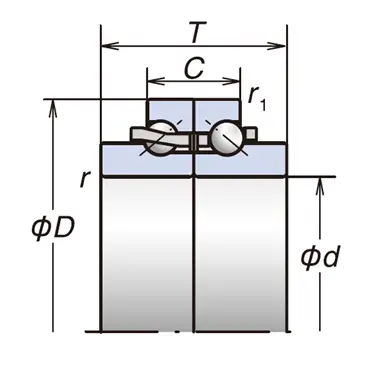

Boundary Dimensions
d
100
mm
Bore diameter
D
140
mm
Outside diameter
T
48
mm
Inner Ring Width
C
24
mm
Outer Ring Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
51.5
kN
Basic Dynamic Load Rating
C0a
171
kN
Basic Static Load Rating
Speeds
Grease
3800
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
4200
min-1
Limiting Speed (EL-Preload)
Grease
3300
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
3600
min-1
Limiting Speed (L-Preload)
Dimensions
50°
Contact Angle

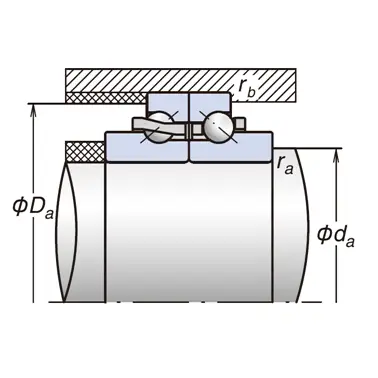

Abutment and Fillet Dimensions
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
da
117
mm
Diameter of Shaft Abutment
Da
134
mm
Diameter of Housing Abutment
