NSK 110TAC29F
Angular Contact Thrust Ball Bearings (NSKTAC F Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
110TAC29F

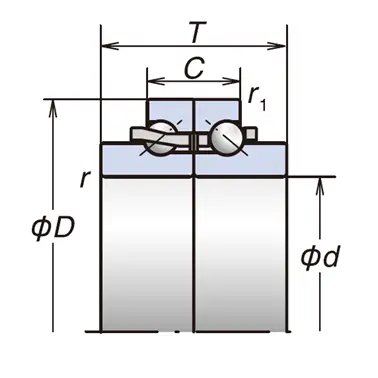

Boundary Dimensions
d
110
mm
Bore diameter
D
150
mm
Outside diameter
T
48
mm
Inner Ring Width
C
24
mm
Outer Ring Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
53.0
kN
Basic Dynamic Load Rating
C0a
187
kN
Basic Static Load Rating
Speeds
Grease
3500
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
3800
min-1
Limiting Speed (EL-Preload)
Grease
3000
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
3300
min-1
Limiting Speed (L-Preload)
Dimensions
50°
Contact Angle

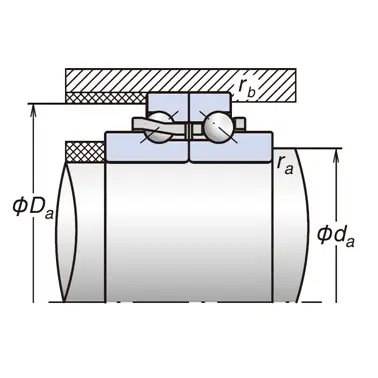

Abutment and Fillet Dimensions
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
da
127
mm
Diameter of Shaft Abutment
Da
144
mm
Diameter of Housing Abutment
