NSK 150BTR10S
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
150BTR10S

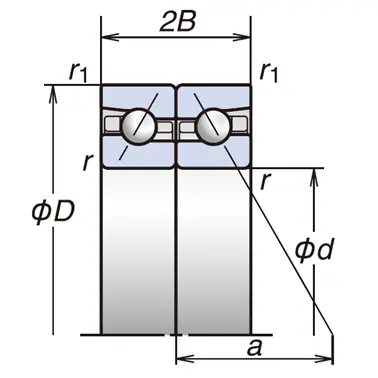

Boundary Dimensions
BTR: 40°
Bearing Type
d
150
mm
Bore diameter
D
225
mm
Outside diameter
2B
67.5
mm
Assembled Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
110
kN
Basic Dynamic Load Rating
C0a
267
kN
Basic Static Load Rating
Speeds
Grease
3500
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
4600
min-1
Limiting Speed (EL-Preload)
Grease
3000
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
4000
min-1
Limiting Speed (L-Preload)
Dimensions
40°
Contact Angle
a
95.5
mm
Effective Load Center
Abutment and Fillet Dimensions
da(min.)
162
mm
Diameter of Shaft Abutment
Db(max.)
218
mm
Diameter of Housing Abutment
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
