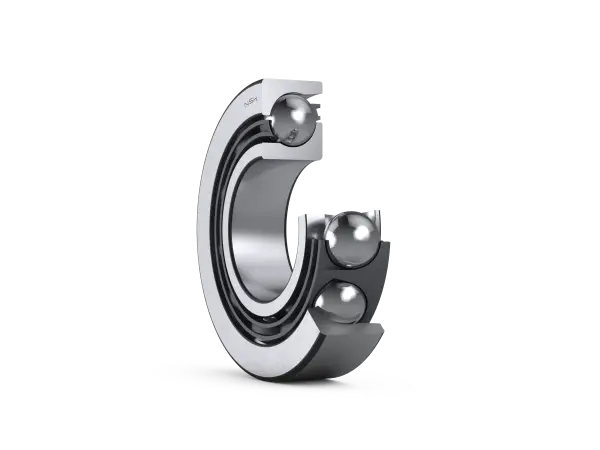

NSK 15TAC02D
For High-Load Drive Applications (NSKTAC 03 Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
15TAC02D
Boundary Dimensions
d
15
mm
Bore diameter
D
35
mm
Outside diameter
B
11
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.3
mm
Chamfer Dimension
Basic Load Ratings
Ca(1row)
25.1
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(2row)
41.0
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(3row)
54.0
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(4row)
66.5
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(5row)
77.5
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Speeds
Grease
12000
min-1
Limiting Speed
Oil (Oil-air)
14800
min-1
Limiting Speed
Dimensions
55°
Contact Angle
d1
19.1
mm
Shoulder Diameter
d2
24.5
mm
Shoulder Diameter
D1
26
mm
Shoulder/Recess Diameter
D2
31.9
mm
Shoulder/Recess Diameter
Performance
1row
18.6
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
2row
37.5
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
3row
56.0
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
4row
74.5
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
5row
93.0
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
