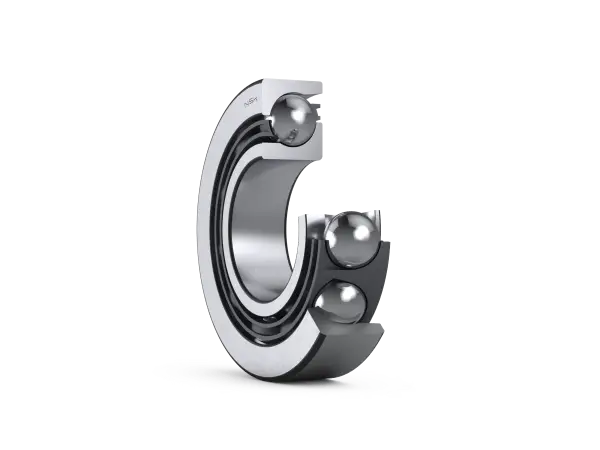

NSK 40TAC03D
For High-Load Drive Applications (NSKTAC 03 Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
40TAC03D
Boundary Dimensions
d
40
mm
Bore diameter
D
90
mm
Outside diameter
B
23
mm
Width
r(min.)
1.5
mm
Chamfer Dimension
r1(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Ca(1row)
136
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(2row)
221
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(3row)
293
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(4row)
360
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Ca(5row)
420
kN
Basic Dynamic Load Rating Ca by Number of Rows Sustaining Fa
Speeds
Grease
4600
min-1
Limiting Speed
Oil (Oil-air)
5700
min-1
Limiting Speed
Dimensions
55°
Contact Angle
d1
50.4
mm
Shoulder Diameter
d2
64.2
mm
Shoulder Diameter
D1
67.1
mm
Shoulder/Recess Diameter
D2
81.7
mm
Shoulder/Recess Diameter
Performance
1row
118
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
2row
235
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
3row
355
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
4row
470
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
5row
590
kN
Limiting Static Axial Load by Number of Rows Sustaining Fa
