NSK 160BAR10S

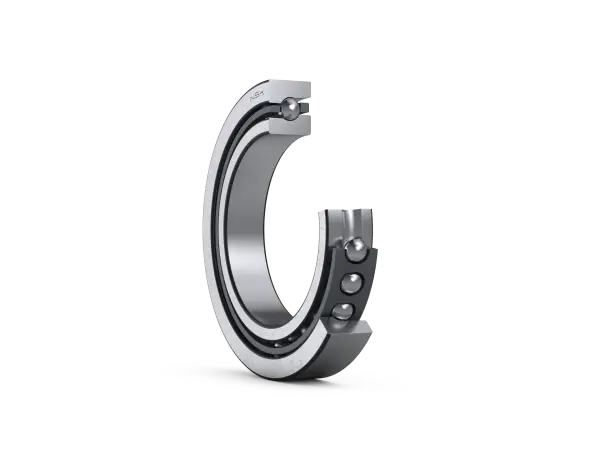

High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
160BAR10S

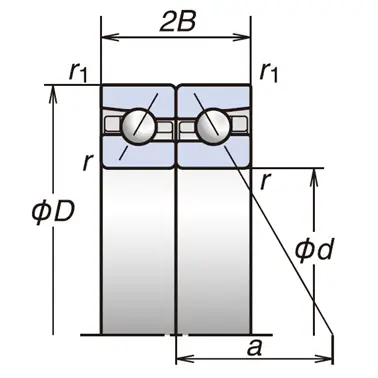

Boundary Dimensions
BAR: 30°
Bearing Type
d
160
mm
Bore diameter
D
240
mm
Outside diameter
2B
72
mm
Assembled Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
100
kN
Basic Dynamic Load Rating
C0a
257
kN
Basic Static Load Rating
Speeds
Grease
3800
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
4800
min-1
Limiting Speed (EL-Preload)
Grease
3300
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
4100
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
75.7
mm
Effective Load Center

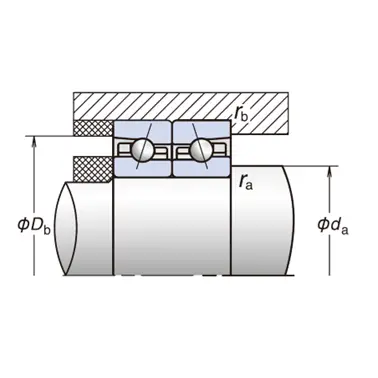

Abutment and Fillet Dimensions
da(min.)
172
mm
Diameter of Shaft Abutment
Db(max.)
233
mm
Diameter of Housing Abutment
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
