NSK 170BAR10S

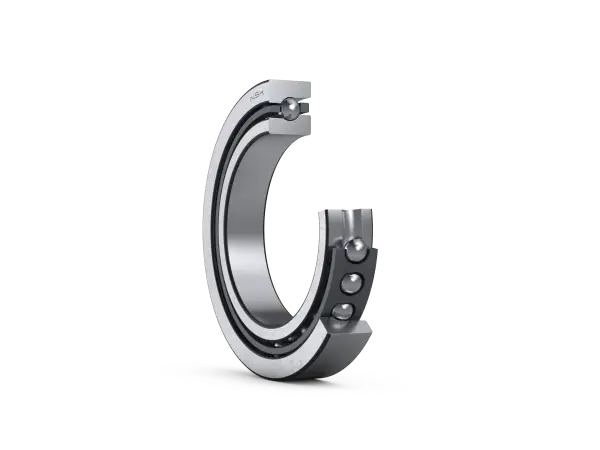

High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
Designations
170BAR10S

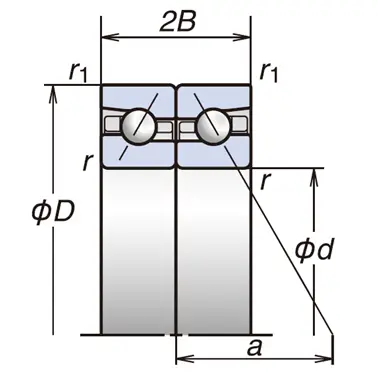

Boundary Dimensions
BAR: 30°
Bearing Type
d
170
mm
Bore diameter
D
260
mm
Outside diameter
2B
81
mm
Assembled Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
117
kN
Basic Dynamic Load Rating
C0a
305
kN
Basic Static Load Rating
Speeds
Grease
3500
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
4500
min-1
Limiting Speed (EL-Preload)
Grease
3000
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
3900
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
82.3
mm
Effective Load Center

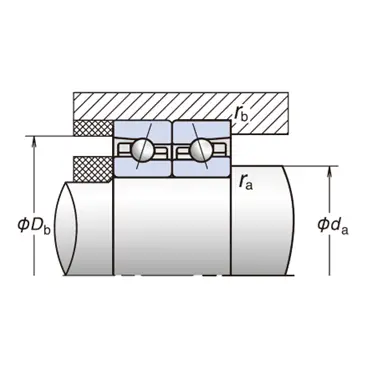

Abutment and Fillet Dimensions
da(min.)
182
mm
Diameter of Shaft Abutment
Db(max.)
253
mm
Diameter of Housing Abutment
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
