NSK 292/500

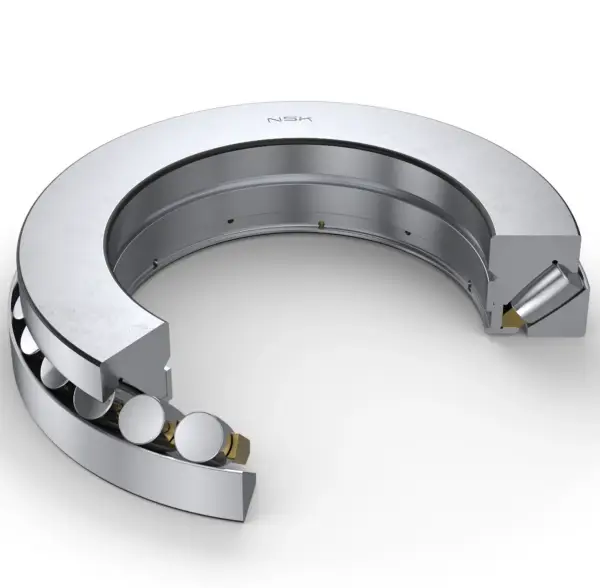

Thrust Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
292/500

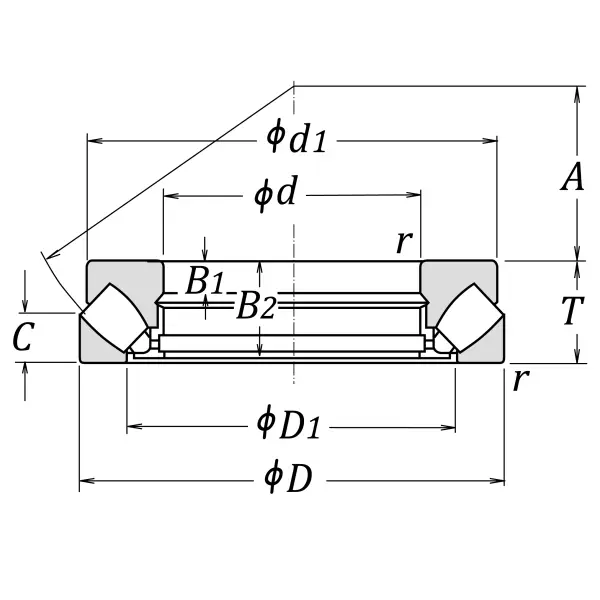

Boundary Dimensions
d
500
mm
Bore diameter
D
670
mm
Outside diameter
T,T3
103
mm
Height
r (min.)
5
mm
Chamfer dimension
Basic Load Ratings
Ca
2390000
N
Basic dynamic load rating
C0a
12400000
N
Basic static load rating
Speeds
Oil (Oil-bath)
600
min-1
Oil-bath lubrication
B2
99
mm
Height shaft washer + cage
d1
645
mm
Outside diameter of shaft washer end side face
B1
33
mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft
C
55
mm
Height housing washer
A
268
mm
Distance from shaft washer end side face to pressure point
D1
574
mm
Shoulder diameter outer ring

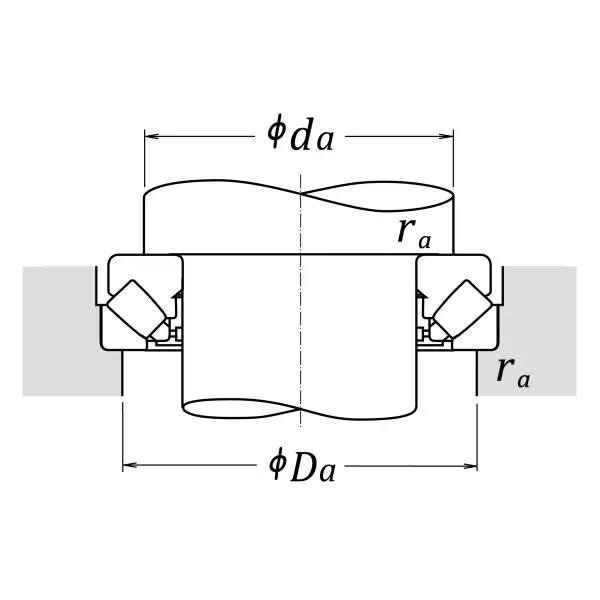

Dimensions
Da (max.)
615
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
da (min.)
575
mm
Abutment diameter spacer ring (E design)
