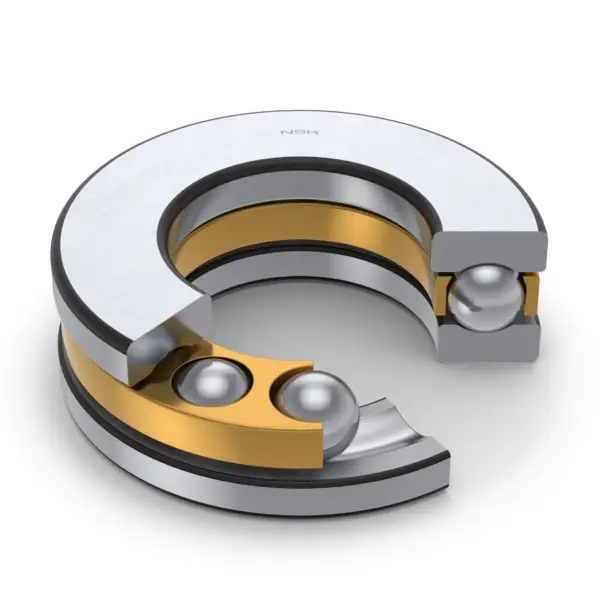

NSK 51168X
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51168X

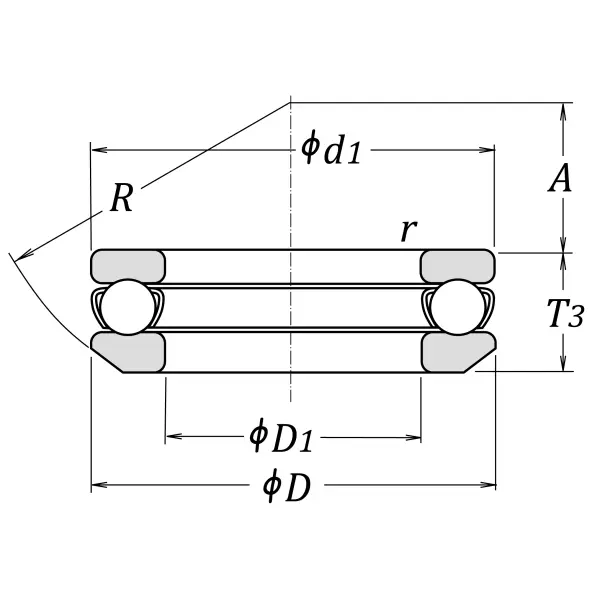

Boundary Dimensions
d
340
mm
Bore diameter
D
420
mm
Outside diameter
T,T3
64
mm
Height
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
375000
N
Basic dynamic load rating
C0a
1760000
N
Basic static load rating
Speeds
Grease
560
min-1
Grease lubrication
Oil (Oil-bath)
850
min-1
Oil-bath lubrication
d1
416
mm
Outside diameter shaft washer
D1
344
mm
Inner diameter housing washer
Dimensions
da (min.)
388
mm
Diameter of shaft abutment
Da (max.)
372
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
