NSK 51172X

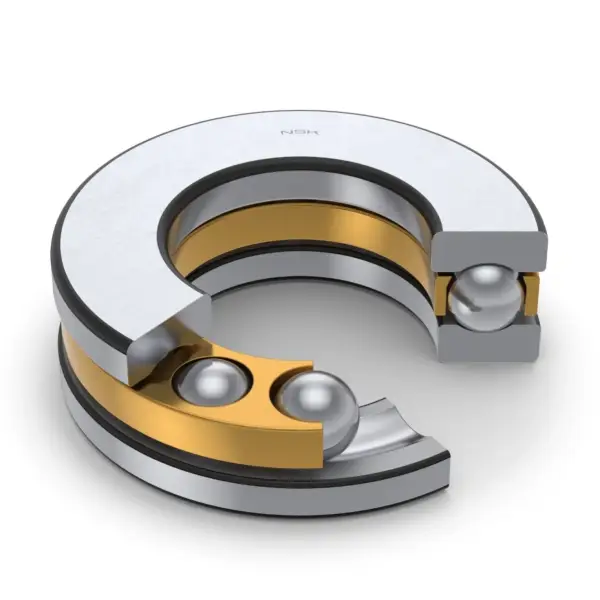

Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
51172X
Boundary Dimensions
d
360
mm
Bore diameter
D
440
mm
Outside diameter
T,T3
65
mm
Height
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Ca
385000
N
Basic dynamic load rating
C0a
1860000
N
Basic static load rating
Speeds
Grease
560
min-1
Grease lubrication
Oil (Oil-bath)
800
min-1
Oil-bath lubrication
d1
436
mm
Outside diameter shaft washer
D1
364
mm
Inner diameter housing washer
Dimensions
da (min.)
408
mm
Diameter of shaft abutment
Da (max.)
392
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
