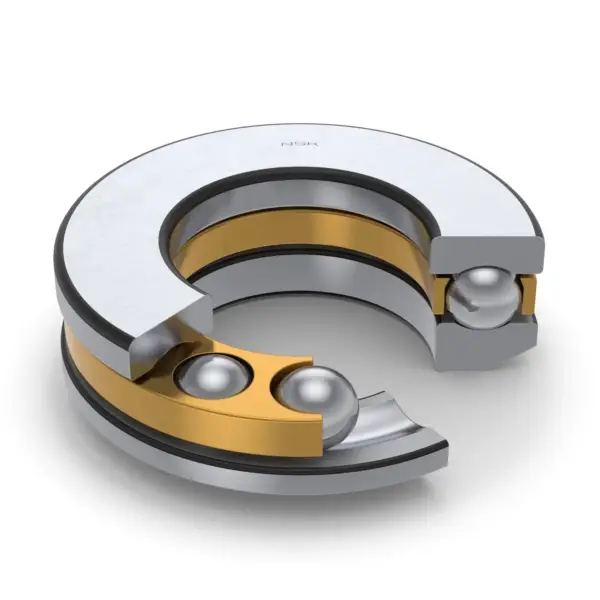

NSK 53272X
Single-Direction Thrust Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
53272X
Boundary Dimensions
d
360
mm
Bore diameter
D
500
mm
Outside diameter
T,T3
116.7
mm
Height
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Ca
705000
N
Basic dynamic load rating
C0a
3500000
N
Basic static load rating
Speeds
Grease
380
min-1
Grease lubrication
Oil (Oil-bath)
560
min-1
Oil-bath lubrication
A
172
mm
Centre height housing washer sphere
R
360
mm
Radius sphered housing washer
d1
495
mm
Outside diameter shaft washer
D1
365
mm
Inner diameter housing washer
Dimensions

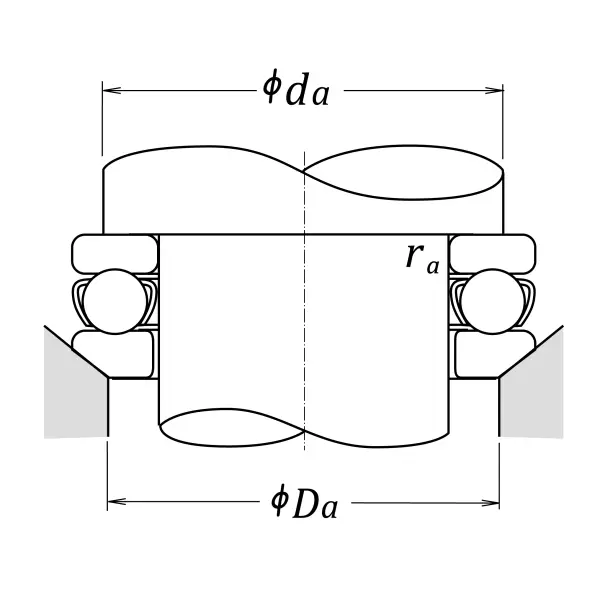

da (min.)
442
mm
Diameter of shaft abutment
Da (max.)
418
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
