NSK 5212

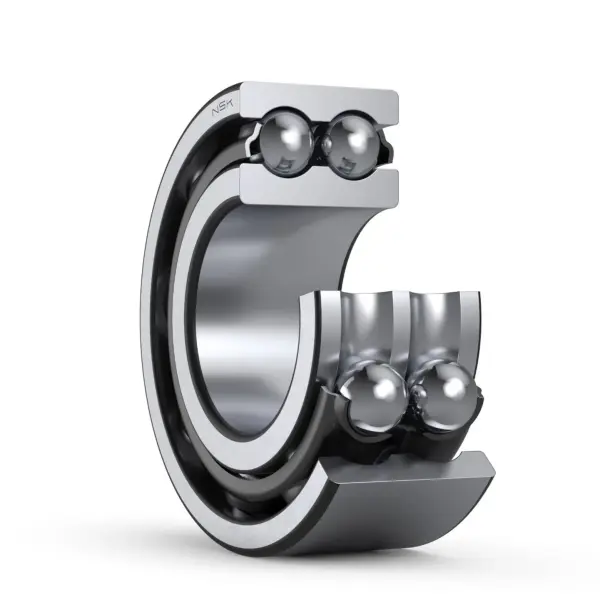

Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5212

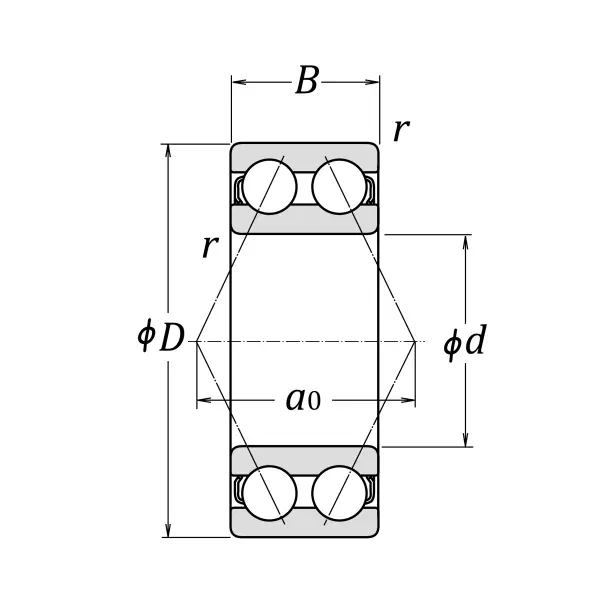

Boundary Dimensions
d
60
mm
Bore diameter
D
110
mm
Outside diameter
B
36.5
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
76000
N
Basic dynamic load rating
C0r
62000
N
Basic static load rating
Speeds
Grease
3800
min-1
Grease lubrication
Oil (Oil-bath)
5000
min-1
Oil-bath lubrication
a0
56.5
mm
Load center spacings

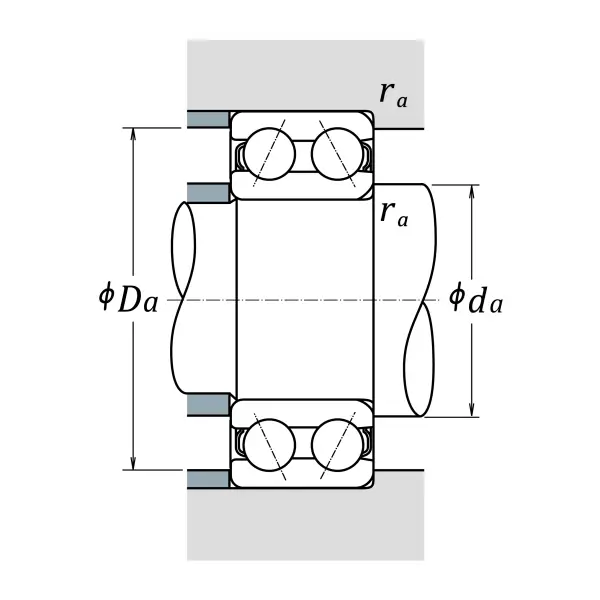

Dimensions
da (min.)
69
mm
Diameter of shaft abutment
Da (max.)
101
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
