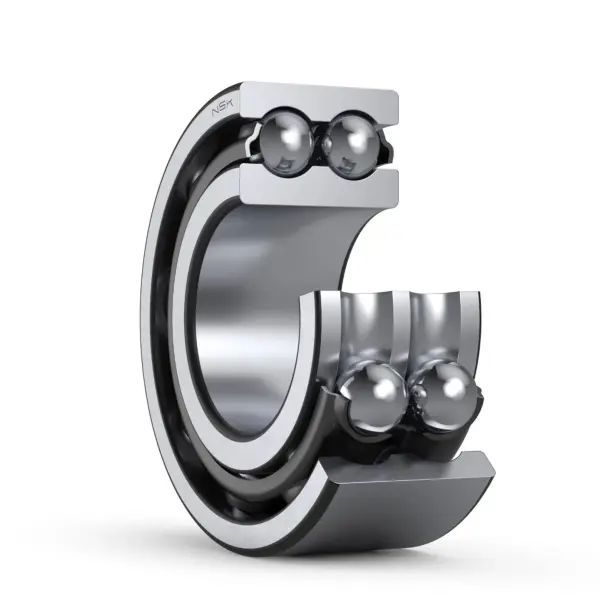

NSK 5214
Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5214

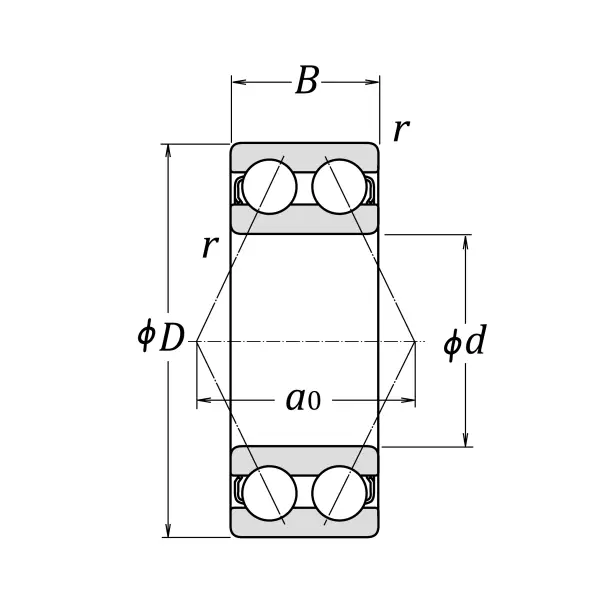

Boundary Dimensions
d
70
mm
Bore diameter
D
125
mm
Outside diameter
B
39.7
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
103000
N
Basic dynamic load rating
C0r
82000
N
Basic static load rating
Speeds
Grease
3400
min-1
Grease lubrication
Oil (Oil-bath)
4500
min-1
Oil-bath lubrication
a0
63.8
mm
Load center spacings

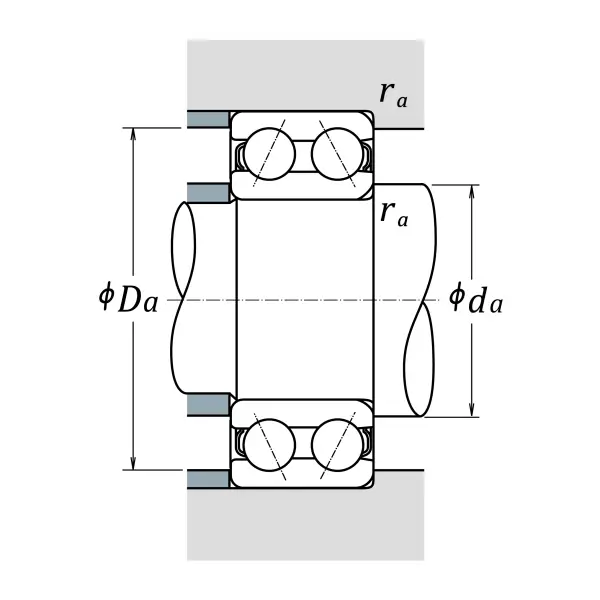

Dimensions
da (min.)
79
mm
Diameter of shaft abutment
Da (max.)
116
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
