NSK 5215

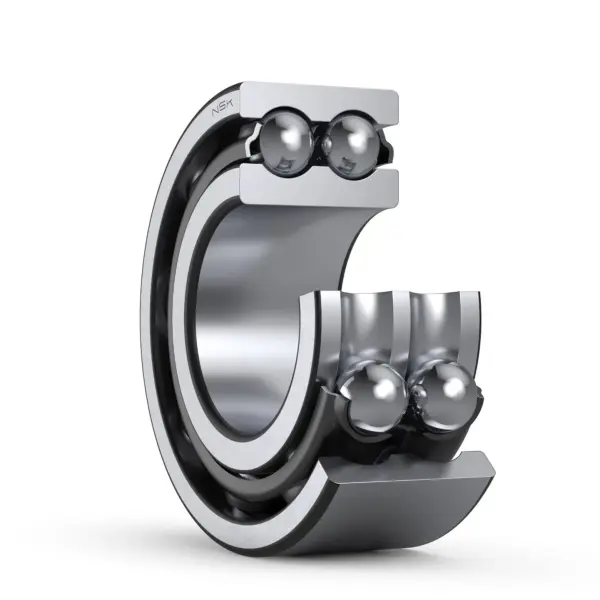

Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5215
Boundary Dimensions
d
75
mm
Bore diameter
D
130
mm
Outside diameter
B
41.3
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
103000
N
Basic dynamic load rating
C0r
83000
N
Basic static load rating
Speeds
Grease
3200
min-1
Grease lubrication
Oil (Oil-bath)
4300
min-1
Oil-bath lubrication
a0
66.1
mm
Load center spacings

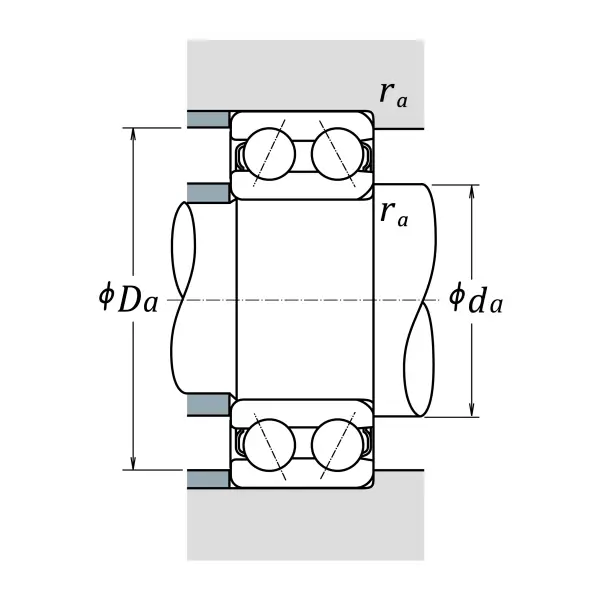

Dimensions
da (min.)
84
mm
Diameter of shaft abutment
Da (max.)
121
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
