NSK 5216

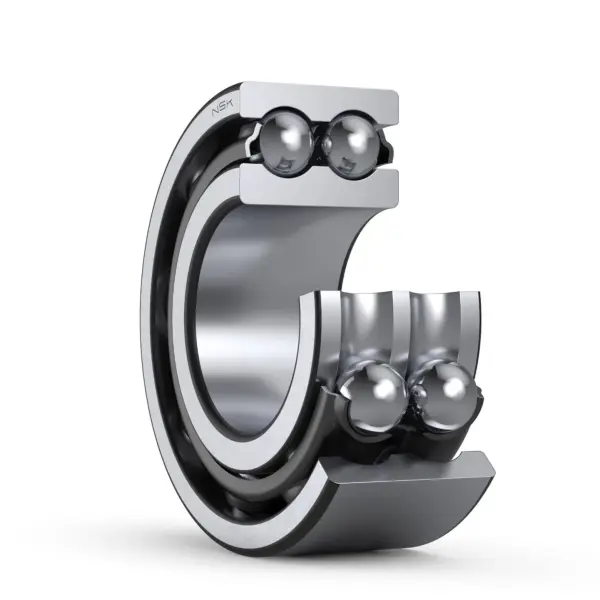

Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5216
Boundary Dimensions
d
80
mm
Bore diameter
D
140
mm
Outside diameter
B
44.4
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
109000
N
Basic dynamic load rating
C0r
93000
N
Basic static load rating
Speeds
Grease
3000
min-1
Grease lubrication
Oil (Oil-bath)
3800
min-1
Oil-bath lubrication
a0
69.6
mm
Load center spacings
Dimensions
da (min.)
90
mm
Diameter of shaft abutment
Da (max.)
130
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
