NSK 5217

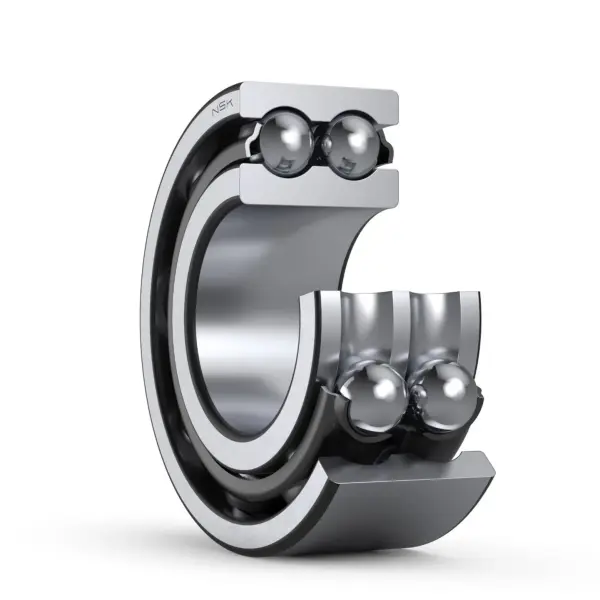

Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5217
Boundary Dimensions
d
85
mm
Bore diameter
D
150
mm
Outside diameter
B
49.2
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
128000
N
Basic dynamic load rating
C0r
110000
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
Oil (Oil-bath)
3600
min-1
Oil-bath lubrication
a0
75.3
mm
Load center spacings

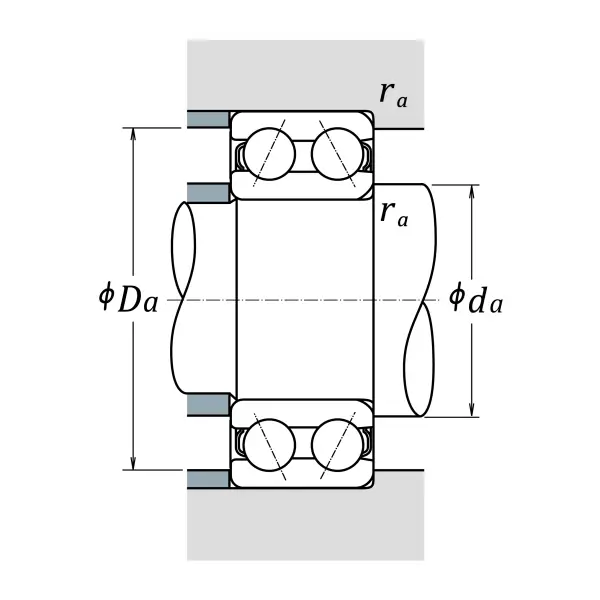

Dimensions
da (min.)
95
mm
Diameter of shaft abutment
Da (max.)
140
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
