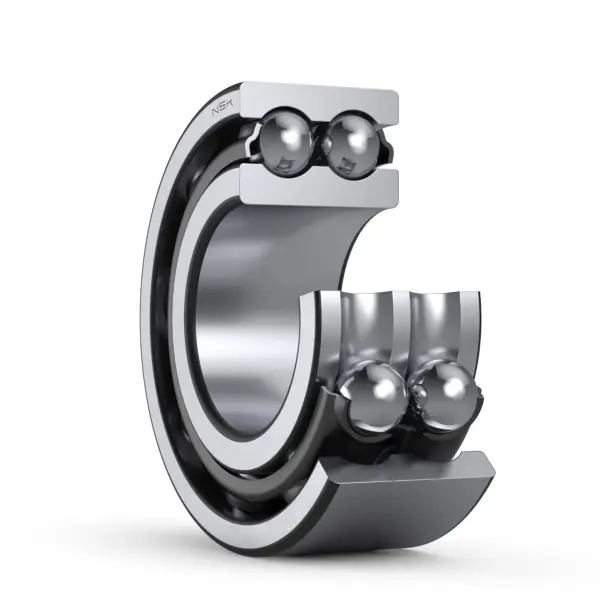

NSK 5304
Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5304
Boundary Dimensions
d
20
mm
Bore diameter
D
52
mm
Outside diameter
B
22.2
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
27100
N
Basic dynamic load rating
C0r
15000
N
Basic static load rating
Speeds
Grease
9000
min-1
Grease lubrication
Oil (Oil-bath)
12000
min-1
Oil-bath lubrication
a0
26.7
mm
Load center spacings

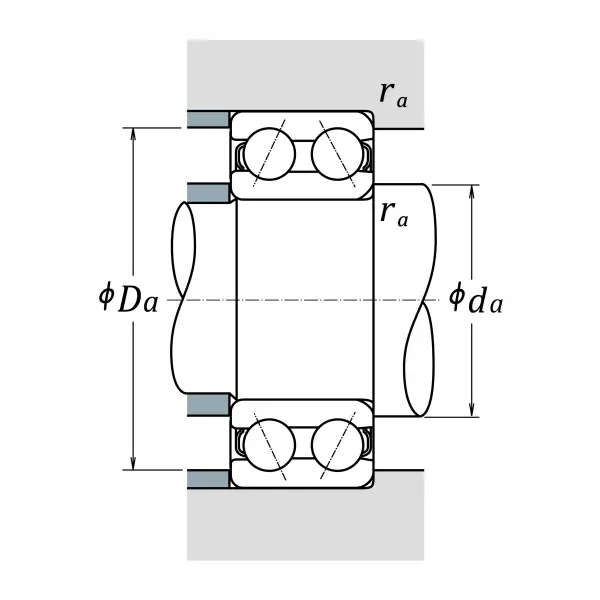

Dimensions
da (min.)
27
mm
Diameter of shaft abutment
Da (max.)
45
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
