NSK 5305
Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5305
Boundary Dimensions
d
25
mm
Bore diameter
D
62
mm
Outside diameter
B
25.4
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
36000
N
Basic dynamic load rating
C0r
20700
N
Basic static load rating
Speeds
Grease
7500
min-1
Grease lubrication
Oil (Oil-bath)
10000
min-1
Oil-bath lubrication
a0
31.8
mm
Load center spacings

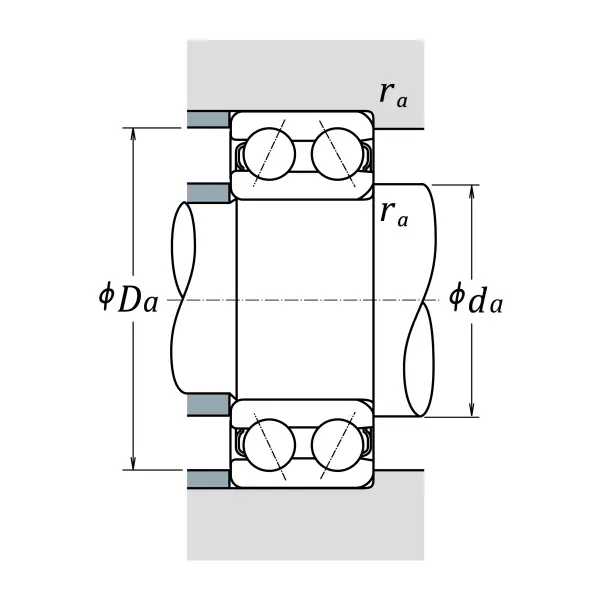

Dimensions
da (min.)
32
mm
Diameter of shaft abutment
Da (max.)
55
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
