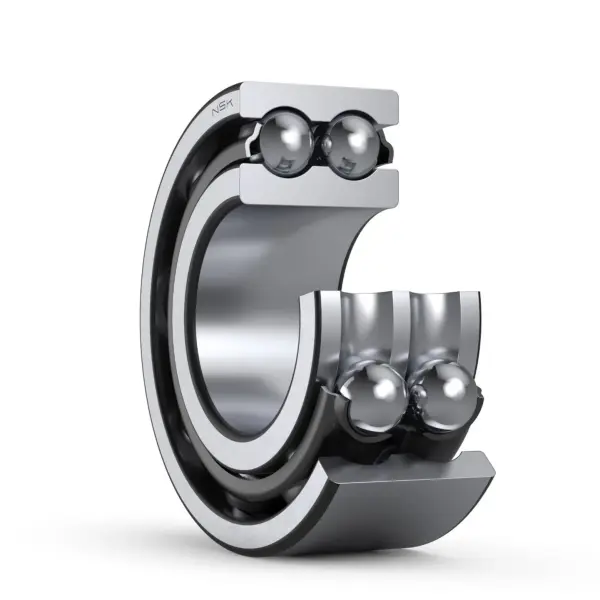

NSK 5306
Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5306

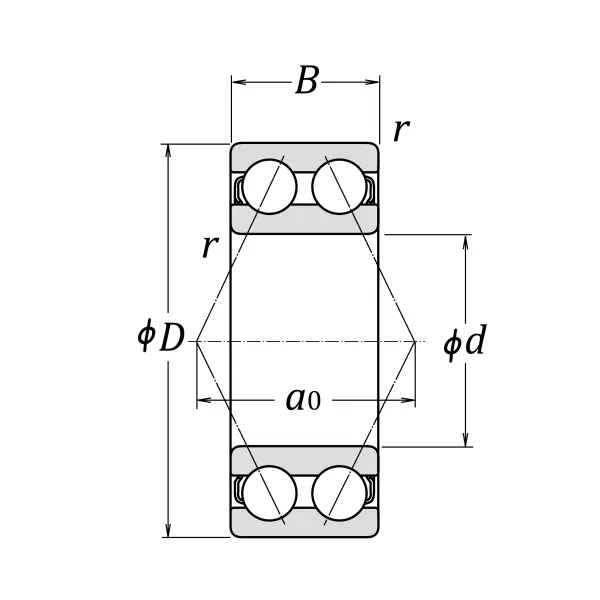

Boundary Dimensions
d
30
mm
Bore diameter
D
72
mm
Outside diameter
B
30.2
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
45000
N
Basic dynamic load rating
C0r
28100
N
Basic static load rating
Speeds
Grease
6300
min-1
Grease lubrication
Oil (Oil-bath)
8500
min-1
Oil-bath lubrication
a0
36.5
mm
Load center spacings

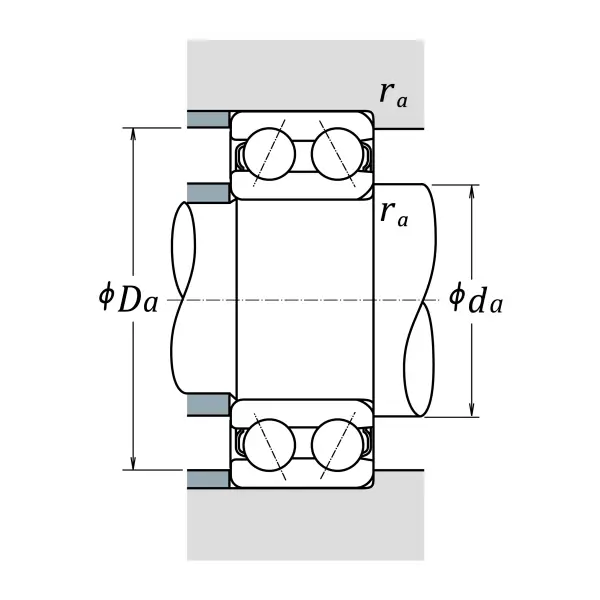

Dimensions
da (min.)
37
mm
Diameter of shaft abutment
Da (max.)
65
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
