NSK 5307

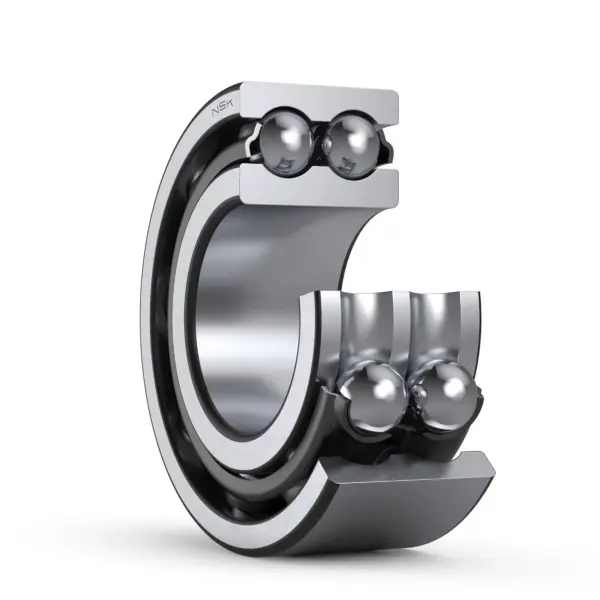

Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5307
Boundary Dimensions
d
35
mm
Bore diameter
D
80
mm
Outside diameter
B
34.9
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
56000
N
Basic dynamic load rating
C0r
36000
N
Basic static load rating
Speeds
Grease
5600
min-1
Grease lubrication
Oil (Oil-bath)
7500
min-1
Oil-bath lubrication
a0
41.6
mm
Load center spacings

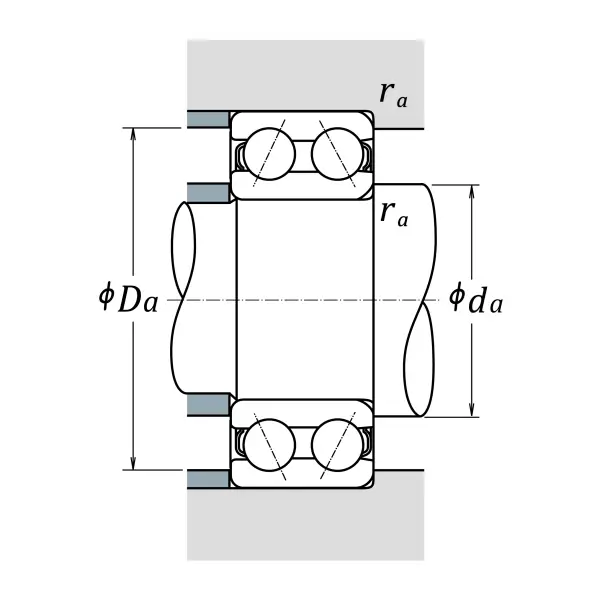

Dimensions
da (min.)
44
mm
Diameter of shaft abutment
Da (max.)
71
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
