NSK 5311

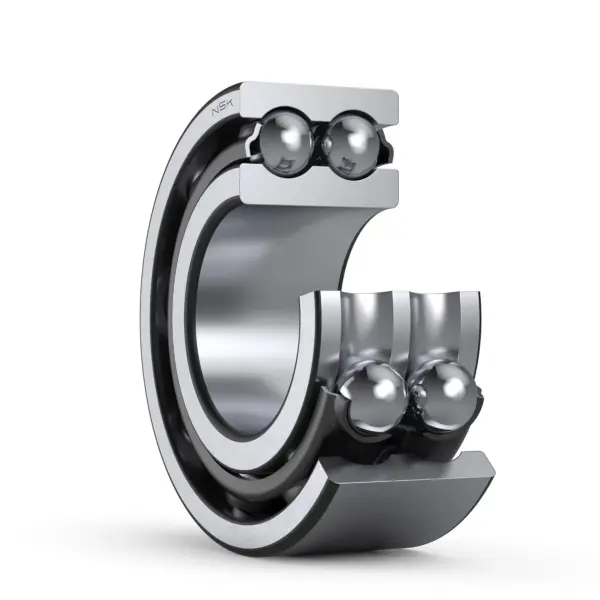

Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5311

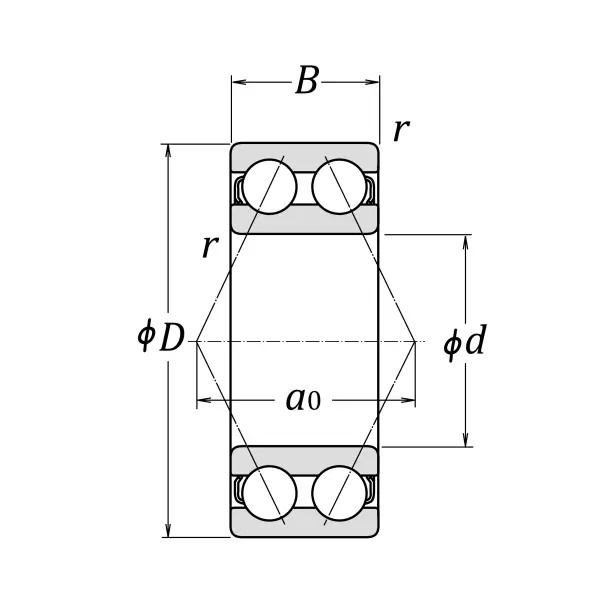

Boundary Dimensions
d
55
mm
Bore diameter
D
120
mm
Outside diameter
B
49.2
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
105000
N
Basic dynamic load rating
C0r
73000
N
Basic static load rating
Speeds
Grease
3800
min-1
Grease lubrication
Oil (Oil-bath)
5000
min-1
Oil-bath lubrication
a0
60.6
mm
Load center spacings

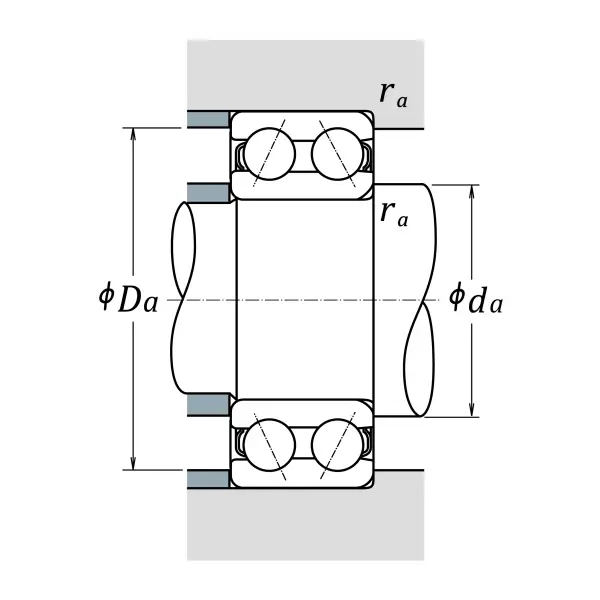

Dimensions
da (min.)
65
mm
Diameter of shaft abutment
Da (max.)
110
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
