NSK 60BAR10H
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
60BAR10H

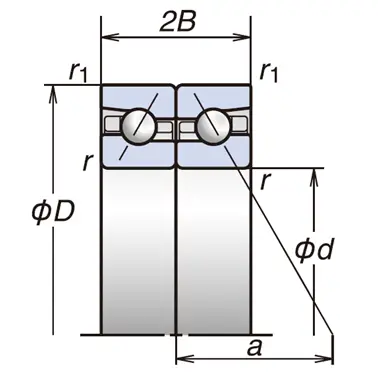

Boundary Dimensions
BAR: 30°
Bearing Type
d
60
mm
Bore diameter
D
95
mm
Outside diameter
2B
33
mm
Assembled Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
18.9
kN
Basic Dynamic Load Rating
C0a
36.5
kN
Basic Static Load Rating
Speeds
Grease
11000
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
13600
min-1
Limiting Speed (EL-Preload)
Grease
9400
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
11600
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
30.4
mm
Effective Load Center

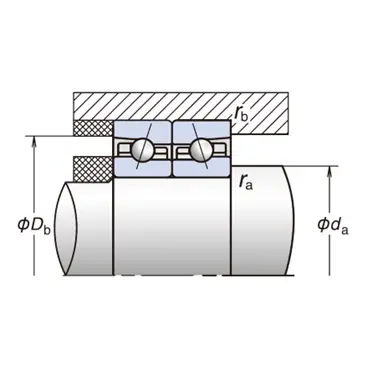

Abutment and Fillet Dimensions
da(min.)
67
mm
Diameter of Shaft Abutment
Db(max.)
90
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
