NSK 629
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
629
Boundary Dimensions
d
9
mm
Bore diameter
D
26
mm
Outside diameter
B
8
mm
Width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
5050
N
Basic dynamic load rating
C0r
1970
N
Basic static load rating
Speeds
Grease
28000
min-1
Grease lubrication
Oil (Oil-bath)
34000
min-1
Oil-bath lubrication

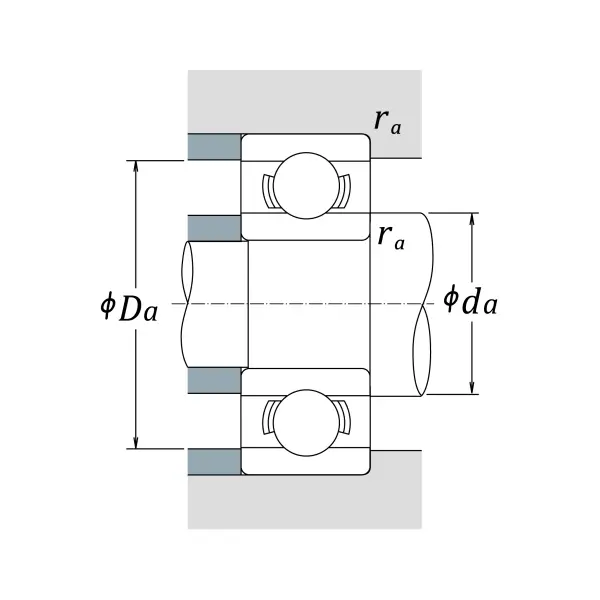

da (min.)
11
mm
Diameter of shaft abutment
Da (max.)
24
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
7
Number of Balls
Dw
4.762
mm
Ball Diameter
