NSK 639
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
639
Boundary Dimensions
d
9
mm
Bore diameter
D
30
mm
Outside diameter
B
10
mm
Width
r (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
5600
N
Basic dynamic load rating
C0r
2390
N
Basic static load rating
Speeds
Grease
24000
min-1
Grease lubrication
Oil (Oil-bath)
30000
min-1
Oil-bath lubrication

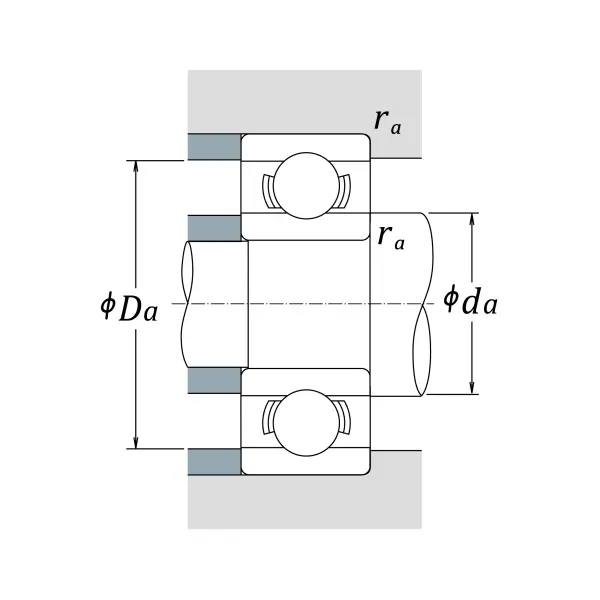

da (min.)
13
mm
Diameter of shaft abutment
Da (max.)
26
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
8
Number of Balls
Dw
4.762
mm
Ball Diameter
