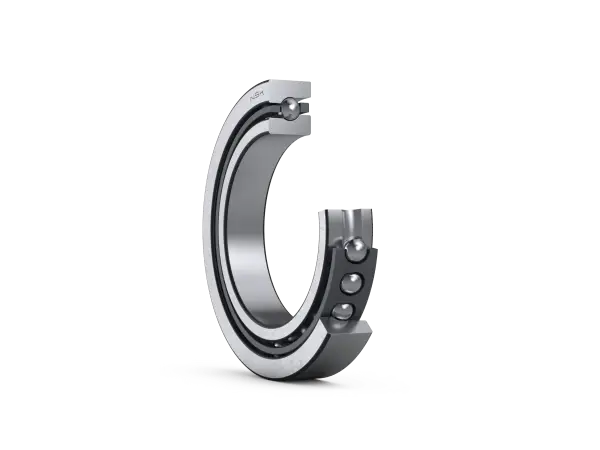

NSK 65BAR10E
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
Designations
65BAR10E

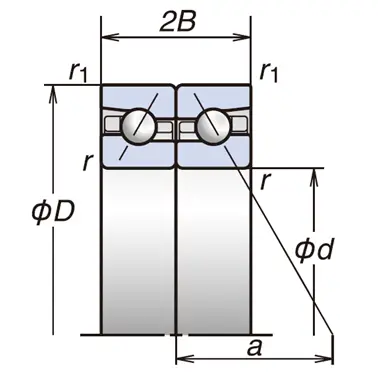

Boundary Dimensions
BAR: 30°
Bearing Type
d
65
mm
Bore diameter
D
100
mm
Outside diameter
2B
33
mm
Assembled Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
19.5
kN
Basic Dynamic Load Rating
C0a
41.5
kN
Basic Static Load Rating
Speeds
Grease
9700
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
12400
min-1
Limiting Speed (EL-Preload)
Grease
8300
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
10600
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
31.8
mm
Effective Load Center

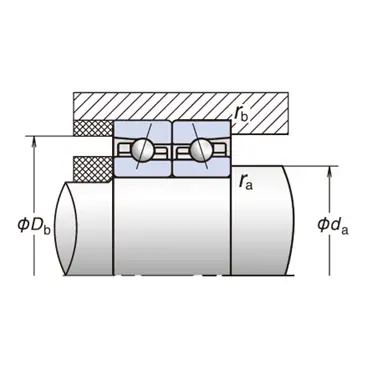

Abutment and Fillet Dimensions
da(min.)
72
mm
Diameter of Shaft Abutment
Db(max.)
95
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
