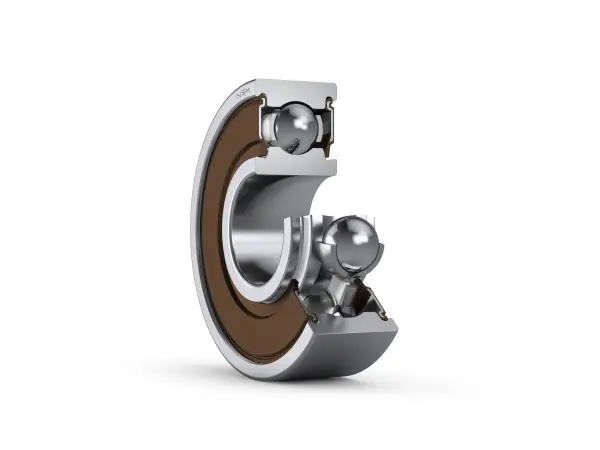

NSK 697DD
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
697DD

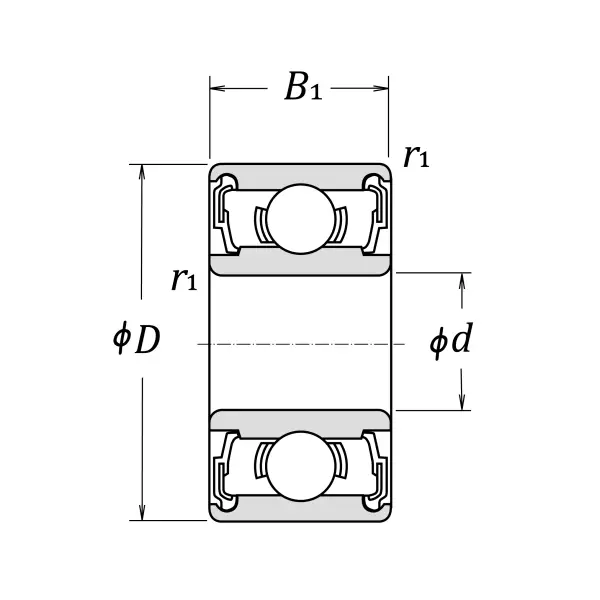

Boundary Dimensions
d
7
mm
Bore diameter
D
17
mm
Outside diameter
B
5
mm
Width
r1 (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
1770
N
Basic dynamic load rating
C0r
710
N
Basic static load rating
Speeds
Grease
28000
min-1
Grease lubrication

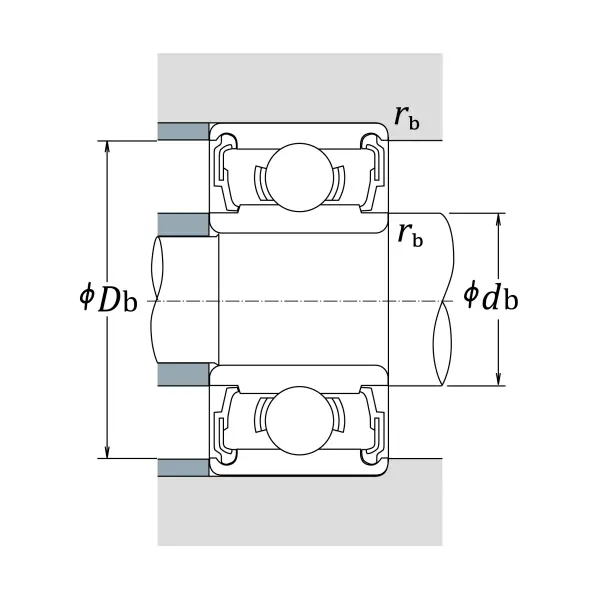

db (max.)
9
mm
Diameter of shaft abutment
Db (max.)
14.8
mm
Diameter of housing abutment
rb (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
9
Number of Balls
Dw
2.381
mm
Ball Diameter
