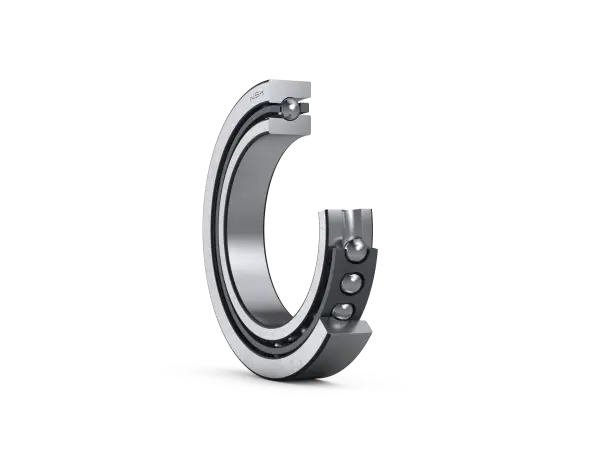

NSK 75BAR10E
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
75BAR10E
Boundary Dimensions
BAR: 30°
Bearing Type
d
75
mm
Bore diameter
D
115
mm
Outside diameter
2B
36
mm
Assembled Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
27.3
kN
Basic Dynamic Load Rating
C0a
57.5
kN
Basic Static Load Rating
Speeds
Grease
8500
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
10800
min-1
Limiting Speed (EL-Preload)
Grease
7300
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
9200
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
36.1
mm
Effective Load Center

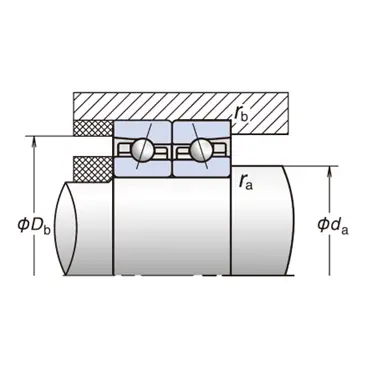

Abutment and Fillet Dimensions
da(min.)
82
mm
Diameter of Shaft Abutment
Db(max.)
110
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
