NSK 80BAR10H
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
80BAR10H

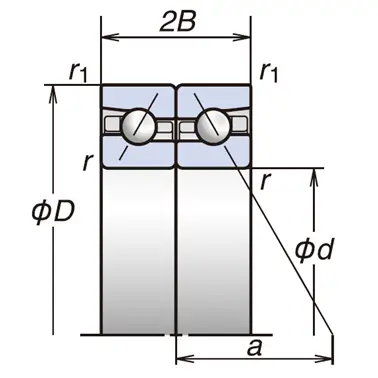

Boundary Dimensions
BAR: 30°
Bearing Type
d
80
mm
Bore diameter
D
125
mm
Outside diameter
2B
40.5
mm
Assembled Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
32.0
kN
Basic Dynamic Load Rating
C0a
65.5
kN
Basic Static Load Rating
Speeds
Grease
8300
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
10300
min-1
Limiting Speed (EL-Preload)
Grease
7100
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
8800
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
39.4
mm
Effective Load Center

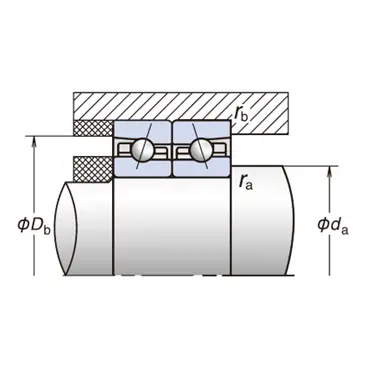

Abutment and Fillet Dimensions
da(min.)
87
mm
Diameter of Shaft Abutment
Db(max.)
120
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
