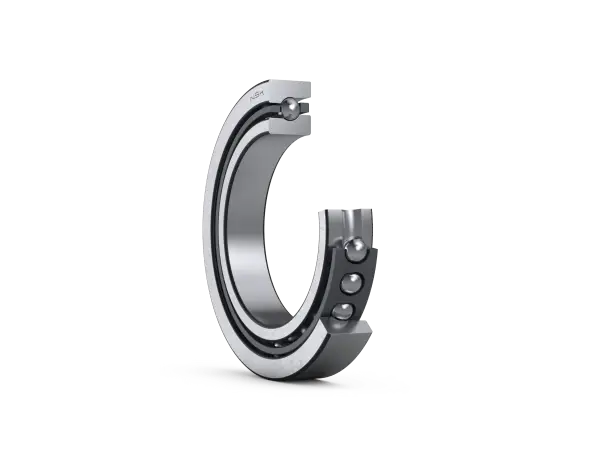

NSK 85BAR10E
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
Designations
85BAR10E

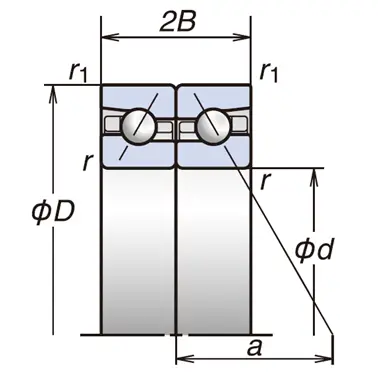

Boundary Dimensions
BAR: 30°
Bearing Type
d
85
mm
Bore diameter
D
130
mm
Outside diameter
2B
40.5
mm
Assembled Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
32.5
kN
Basic Dynamic Load Rating
C0a
71.5
kN
Basic Static Load Rating
Speeds
Grease
7500
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
9500
min-1
Limiting Speed (EL-Preload)
Grease
6400
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
8100
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
41.1
mm
Effective Load Center

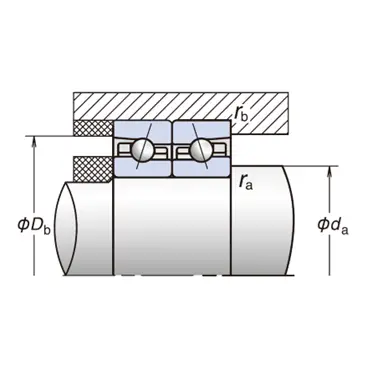

Abutment and Fillet Dimensions
da(min.)
92
mm
Diameter of Shaft Abutment
Db(max.)
125
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
