NSK 85BTR10E

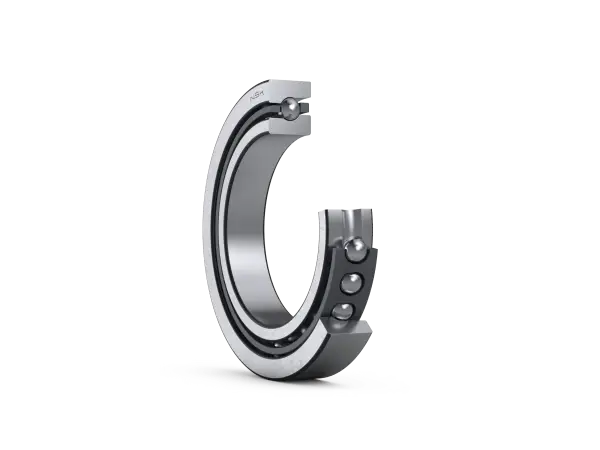

High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
Designations
85BTR10E

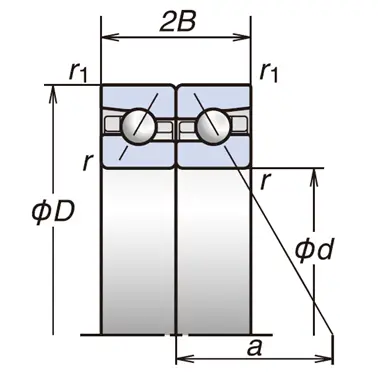

Boundary Dimensions
BTR: 40°
Bearing Type
d
85
mm
Bore diameter
D
130
mm
Outside diameter
2B
40.5
mm
Assembled Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
38.5
kN
Basic Dynamic Load Rating
C0a
81.5
kN
Basic Static Load Rating
Speeds
Grease
6600
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
8500
min-1
Limiting Speed (EL-Preload)
Grease
5700
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
7300
min-1
Limiting Speed (L-Preload)
Dimensions
40°
Contact Angle
a
55.2
mm
Effective Load Center

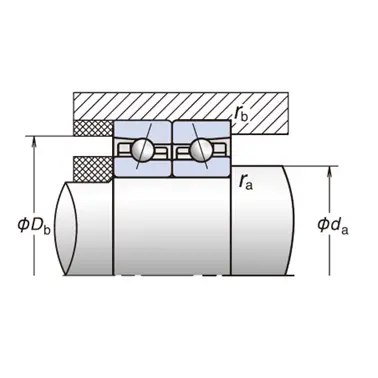

Abutment and Fillet Dimensions
da(min.)
92
mm
Diameter of Shaft Abutment
Db(max.)
125
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
