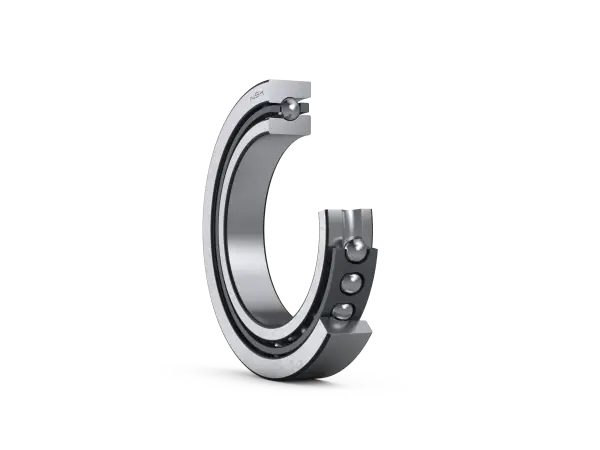

NSK 95BAR10E
High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
95BAR10E
Boundary Dimensions
BAR: 30°
Bearing Type
d
95
mm
Bore diameter
D
145
mm
Outside diameter
2B
45
mm
Assembled Width
r(min.)
1.5
mm
Chamfer Dimension
r1(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Ca
43.0
kN
Basic Dynamic Load Rating
C0a
96.5
kN
Basic Static Load Rating
Speeds
Grease
6700
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
8500
min-1
Limiting Speed (EL-Preload)
Grease
5700
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
7300
min-1
Limiting Speed (L-Preload)
Dimensions
30°
Contact Angle
a
45.5
mm
Effective Load Center

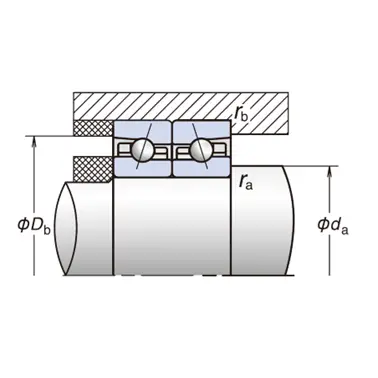

Abutment and Fillet Dimensions
da(min.)
104
mm
Diameter of Shaft Abutment
Db(max.)
139
mm
Diameter of Housing Abutment
ra(max.)
1.5
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.8
mm
Radius of Shaft or Housing Fillet
