NSK BL220ZZ
Maximum-Type Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BL220ZZ

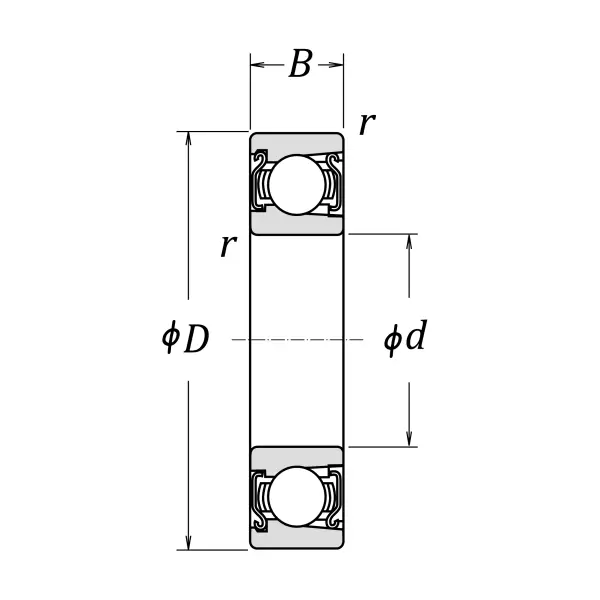

Boundary Dimensions
d
100
mm
Bore diameter
D
180
mm
Outside diameter
B
34
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
149000
N
Basic dynamic load rating
C0r
140000
N
Basic static load rating
Speeds
Grease
3400
min-1
Grease lubrication
da (min.)
111
mm
Diameter of shaft abutment
Da (max.)
169
mm
Diameter of housing abutment
db (max.)
121.5
mm
Diameter of shaft abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
3.54
kg
Mass approx.
