NSK BL315
Maximum-Type Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BL315
Boundary Dimensions
d
75
mm
Bore diameter
D
160
mm
Outside diameter
B
37
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
138000
N
Basic dynamic load rating
C0r
116000
N
Basic static load rating
Speeds
Grease
4000
min-1
Grease lubrication
Oil (Oil-bath)
5000
min-1
Oil-bath lubrication

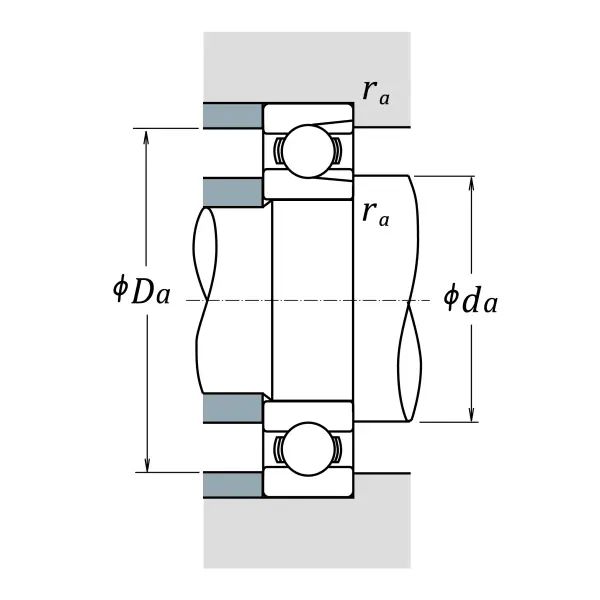

da (min.)
86
mm
Diameter of shaft abutment
Da (max.)
149
mm
Diameter of housing abutment
db (max.)
98.5
mm
Diameter of shaft abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
3.43
kg
Mass approx.
