NSK BL319
Maximum-Type Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BL319

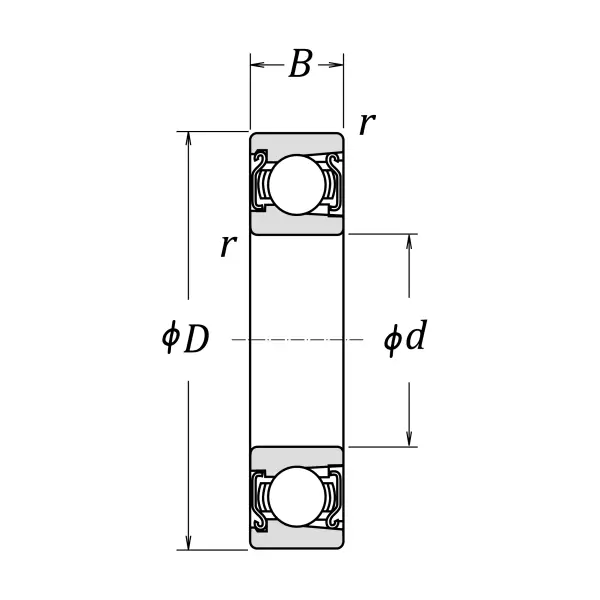

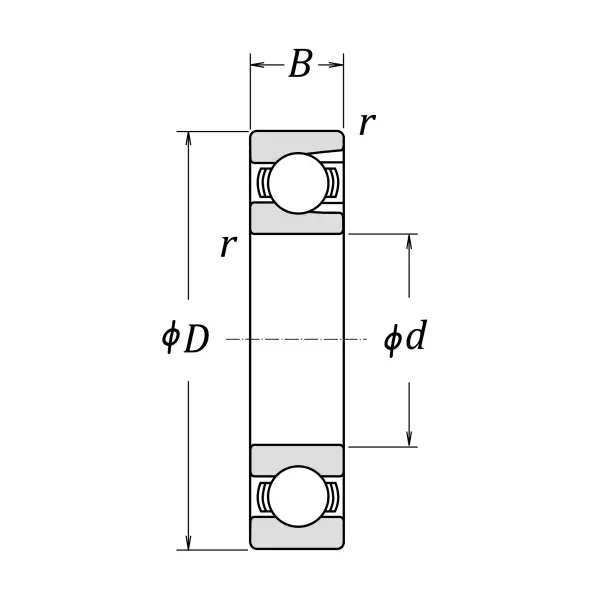

Boundary Dimensions
d
95
mm
Bore diameter
D
200
mm
Outside diameter
B
45
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
186000
N
Basic dynamic load rating
C0r
178000
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
Oil (Oil-bath)
3600
min-1
Oil-bath lubrication
da (min.)
108
mm
Diameter of shaft abutment
Da (max.)
187
mm
Diameter of housing abutment
db (max.)
124
mm
Diameter of shaft abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet

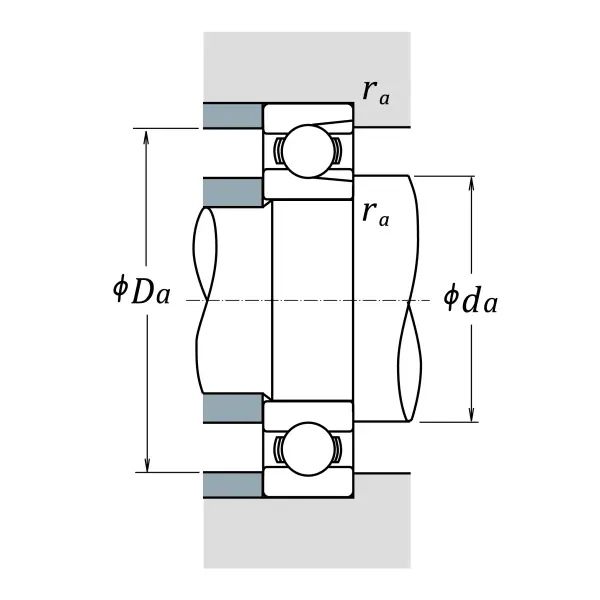

Abutment and Fillet Dimensions
Mass approx.
6.4
kg
Mass approx.
