NSK BSF2068-DT
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSF2068-DT

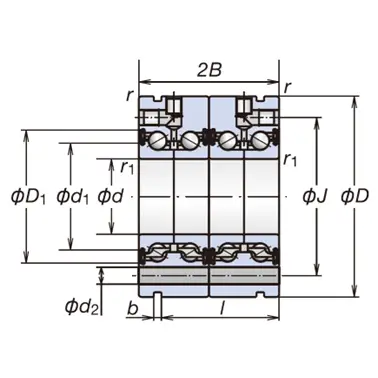

Boundary Dimensions
d
20
mm
Bore diameter
D
68
mm
Outside diameter
2B
56
mm
Assembled Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
51.5
kN
Basic Dynamic Load Rating
C0a
82.0
kN
Basic Static Load Rating
Speeds
Grease
5800
min-1
Limiting Speed
Dimensions
60°
Contact Angle
d1
32.6
mm
Shoulder Diameter
D1
43
mm
Shoulder/Recess Diameter
Performance
58.5
kN
Limiting Static Axial Load
