NSK BSF30100
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSF30100

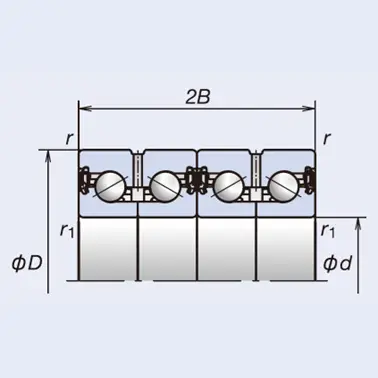

Boundary Dimensions
d
30
mm
Bore diameter
D
100
mm
Outside diameter
B
38
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
72.5
kN
Basic Dynamic Load Rating
C0a
94.0
kN
Basic Static Load Rating
Speeds
Grease
3900
min-1
Limiting Speed
Dimensions
60°
Contact Angle
d1
49.1
mm
Shoulder Diameter
D1
64.4
mm
Shoulder/Recess Diameter
Performance
66.5
kN
Limiting Static Axial Load
