NSK BSF3080-DT
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSF3080-DT

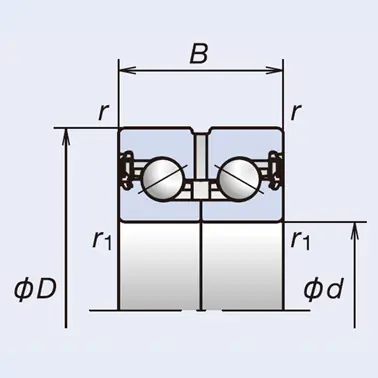

Boundary Dimensions
d
30
mm
Bore diameter
D
80
mm
Outside diameter
2B
56
mm
Assembled Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
58.5
kN
Basic Dynamic Load Rating
C0a
111
kN
Basic Static Load Rating
Speeds
Grease
4500
min-1
Limiting Speed
Dimensions
60°
Contact Angle
d1
42.6
mm
Shoulder Diameter
D1
53
mm
Shoulder/Recess Diameter
Performance
77.0
kN
Limiting Static Axial Load
