NSK BSF3590
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSF3590

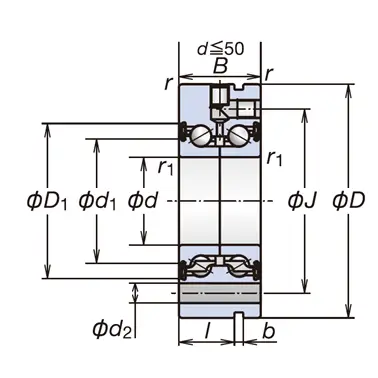

Boundary Dimensions
d
35
mm
Bore diameter
D
90
mm
Outside diameter
B
34
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
50.0
kN
Basic Dynamic Load Rating
C0a
77.5
kN
Basic Static Load Rating
Speeds
Grease
3800
min-1
Limiting Speed
Dimensions
60°
Contact Angle
d1
53.1
mm
Shoulder Diameter
D1
62.2
mm
Shoulder/Recess Diameter
Performance
52.0
kN
Limiting Static Axial Load
