NSK BSN2052
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSN2052

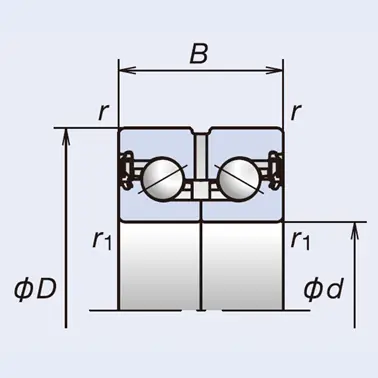

Boundary Dimensions
d
20
mm
Bore diameter
D
52
mm
Outside diameter
B
28
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
31.5
kN
Basic Dynamic Load Rating
C0a
41.0
kN
Basic Static Load Rating
Speeds
Grease
5800
min-1
Limiting Speed
Dimensions
60°
Contact Angle

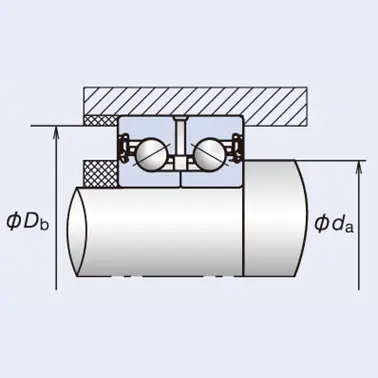

Abutment and Fillet Dimensions
da(min.)
24
mm
Diameter of Shaft Abutment
Db(max.)
43
mm
Diameter of Housing Abutment
