NSK BSN2557
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSN2557

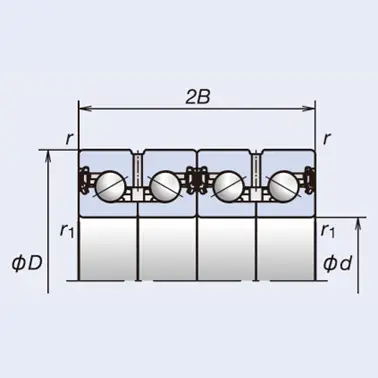

Boundary Dimensions
d
25
mm
Bore diameter
D
57
mm
Outside diameter
B
28
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
34.0
kN
Basic Dynamic Load Rating
C0a
48.0
kN
Basic Static Load Rating
Speeds
Grease
5100
min-1
Limiting Speed
Dimensions
60°
Contact Angle

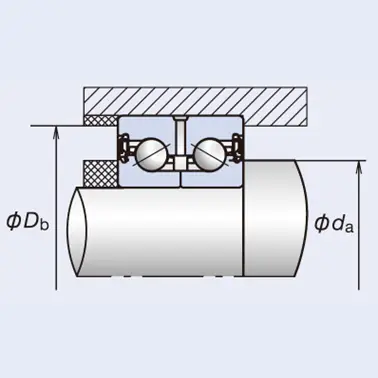

Abutment and Fillet Dimensions
da(min.)
29
mm
Diameter of Shaft Abutment
Db(max.)
48
mm
Diameter of Housing Abutment
