NSK BSN3572
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSN3572
Boundary Dimensions
d
35
mm
Bore diameter
D
72
mm
Outside diameter
B
34
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
50.0
kN
Basic Dynamic Load Rating
C0a
77.5
kN
Basic Static Load Rating
Speeds
Grease
3800
min-1
Limiting Speed
Dimensions
60°
Contact Angle

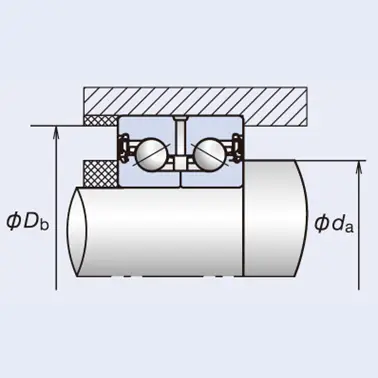

Abutment and Fillet Dimensions
da(min.)
40
mm
Diameter of Shaft Abutment
Db(max.)
62
mm
Diameter of Housing Abutment
