NSK BSN4075-DT
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSN4075-DT

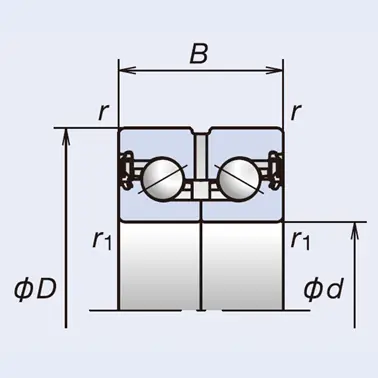

Boundary Dimensions
d
40
mm
Bore diameter
D
75
mm
Outside diameter
2B
68
mm
Assembled Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
86.5
kN
Basic Dynamic Load Rating
C0a
176
kN
Basic Static Load Rating
Speeds
Grease
3500
min-1
Limiting Speed
Dimensions
60°
Contact Angle

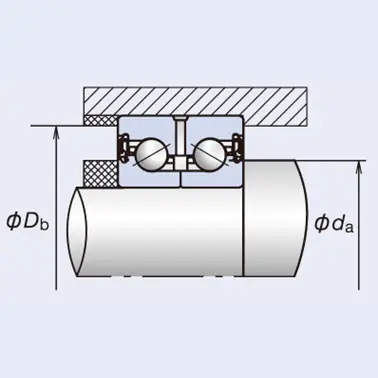

Abutment and Fillet Dimensions
da(min.)
46
mm
Diameter of Shaft Abutment
Db(max.)
67
mm
Diameter of Housing Abutment
