NSK C-UCF208D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCF208D1
Included products
Bearing
Housing
F208D1
Housing

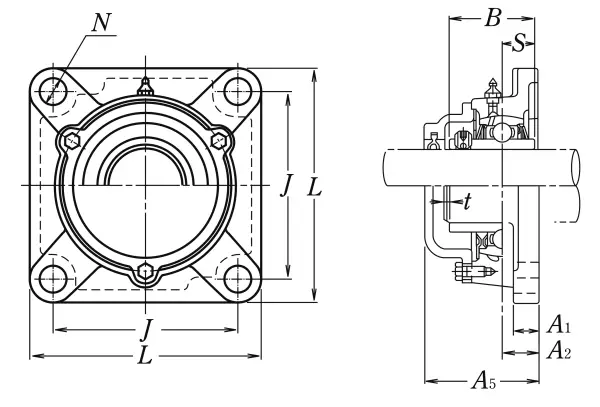

Nominal Dimensions
d
40
mm
Bore diameter
L
130
mm
Overall length
J
102
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
15
mm
Flange width
A5
66
mm
Width including end cover
A0
51.2
mm
Overall width
B,B1,B2
49.2
mm
Width of inner ring
t
3
mm
Clearance
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
2.2
kg
Mass approx.
