NSK C-UCF216D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCF216D1
Included products
Bearing
Housing
F216D1
Housing

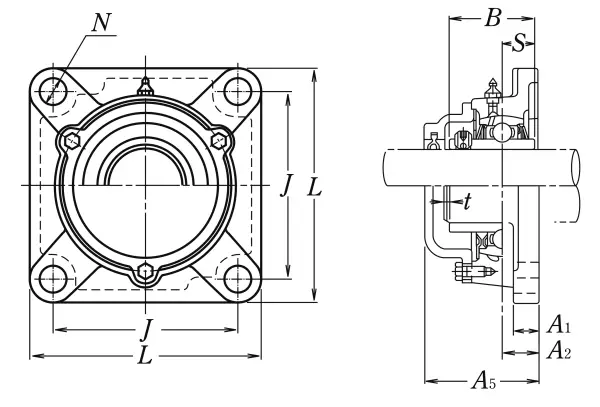

Nominal Dimensions
d
80
mm
Bore diameter
L
208
mm
Overall length
J
165
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
34
mm
Flange width
A1
22
mm
Flange width
A5
106
mm
Width including end cover
A0
83.3
mm
Overall width
B,B1,B2
82.6
mm
Width of inner ring
t
4
mm
Clearance
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
mass
9.3
kg
Mass approx.
